Name: Euchner NZ1VZ2131EM Cable Entry M20 X 15 082123
Brand: Euchner
Price: 1 USD

Brand Name : Euchner

Model Number : NZ1VZ-2131E-M

Place of Origin : Germany

MOQ : 1

Price : variable

Payment Terms : T/T

Supply Ability : 30PCS/WEEKS

Delivery Time : Negotiate

Packaging Details : Carton

Description : Euchner NZ1VZ-2131E-M Cable Entry M20 X 1.5 Housing

Ordernumber : 082123

Actuating force : 35 N

Actuation frequency : max. 1200 1/h

Ambient temperature : -25 ... +80 °C

Approach speed : max. 20 m/min

nsertion depth : 52 mm

Retention force : 8 N

Gross weight : 0,349kg

Contact Now

Euchner NZ1VZ-2131E-M Cable Entry M20 X 1.5 082123

Housing according to EN 50041
Cable entry M20 x 1.5

Electrical connection values

Connection cross section	0.34 ... 1.5 mm²
Rated insulation voltage Ui	250 V
Rated impulse withstand voltage Uimp	2.5 kV
Utilization category
AC-15	4 A 230 V
DC-13	4 A 24 V
Short circuit protection according to IEC 60269-1	4A gG
Switching voltage
min. at 10 mA	12 V
Switching current
min. at 24 V	1 mA
thermal rated current Ith	4 A

Mechanical values and environment

Approach direction	A
Connection type
1 x	M20 x 1.5
Number of door position NO contacts	1
Number of door position positively driven contacts	3
Extraction force	35 N
Actuation frequency	max. 1200 1/h
Actuating force	35 N
Installation orientation	any
Insertion depth	52 mm
Mechanical life	2 x 10⁶
Retention force	8 N
Switching principle	Slow-action switching contact
Degree of protection	IP67
Ambient temperature	-25 ... +80 °C
Material
Housing	Anodized die-cast alloy
Contact	Silver alloy, gold flashed

Euchner NZ1VZ-2131E-M Cable Entry M20 X 1.5 082123

Related Product Recommendation

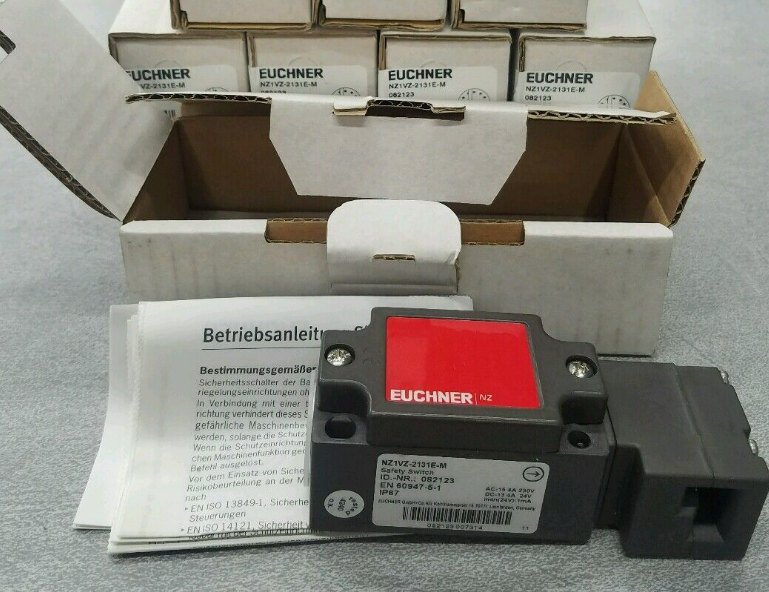

Euchner NZ1VZ-2131E-M Cable Entry M20 X 1.5 082123 Images
