Brand Name : Euchner
Model Number : CES-A-C5H-01
Place of Origin : Germany
MOQ : 1
Price : variable
Payment Terms : T/T
Supply Ability : 30PCS/WEEKS
Delivery Time : Negotiate
Packaging Details : Carton
Description : Safety Switch Euchner Category 4 / PL E According To EN ISO 13849-1 091458
Ordernumber : 091458
Current consumption : 80 mA
Output current : 1 ... 400 mA
Output voltage : 0.8 x UB ... UB V DC
EMC protection requirements : according to EN 60947-5-3
Switching frequency : max. 1 Hz
Degree of protection : IP65/IP67

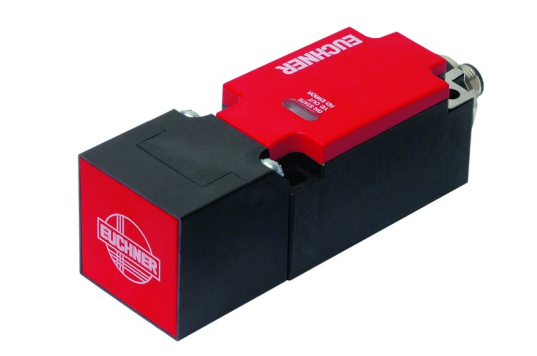

Euchner CES-A-C5H-01 Category 4 / PL E According To EN ISO 13849-1 091458
Safety switch with integrated evaluation electronics
Pulsed signals can be switched
2 safety outputs (semiconductor outputs)
Category 4 / PL e according to EN ISO 13849-1
Unicode
Approach direction
Can be adjusted in 90° steps
Unicode evaluation
Each actuator is highly coded (unicode). The evaluation unit detects only the actuator that has been taught-in. Additional actuators can be taught-in.
Category according to EN ISO 13849-1
Due to two redundantly designed semiconductor outputs (safety outputs) with internal monitoring suitable for:
• Category 4/PL e according to EN ISO 13849-1
LED indicator
STATE Status LED
OUT/ERROR Safety outputs status / diagnostics LED (combined)
Additional connection
OUT Monitoring output (semiconductor)
Attention:
The actuating range may vary depending on the substrate material and installation situation.
